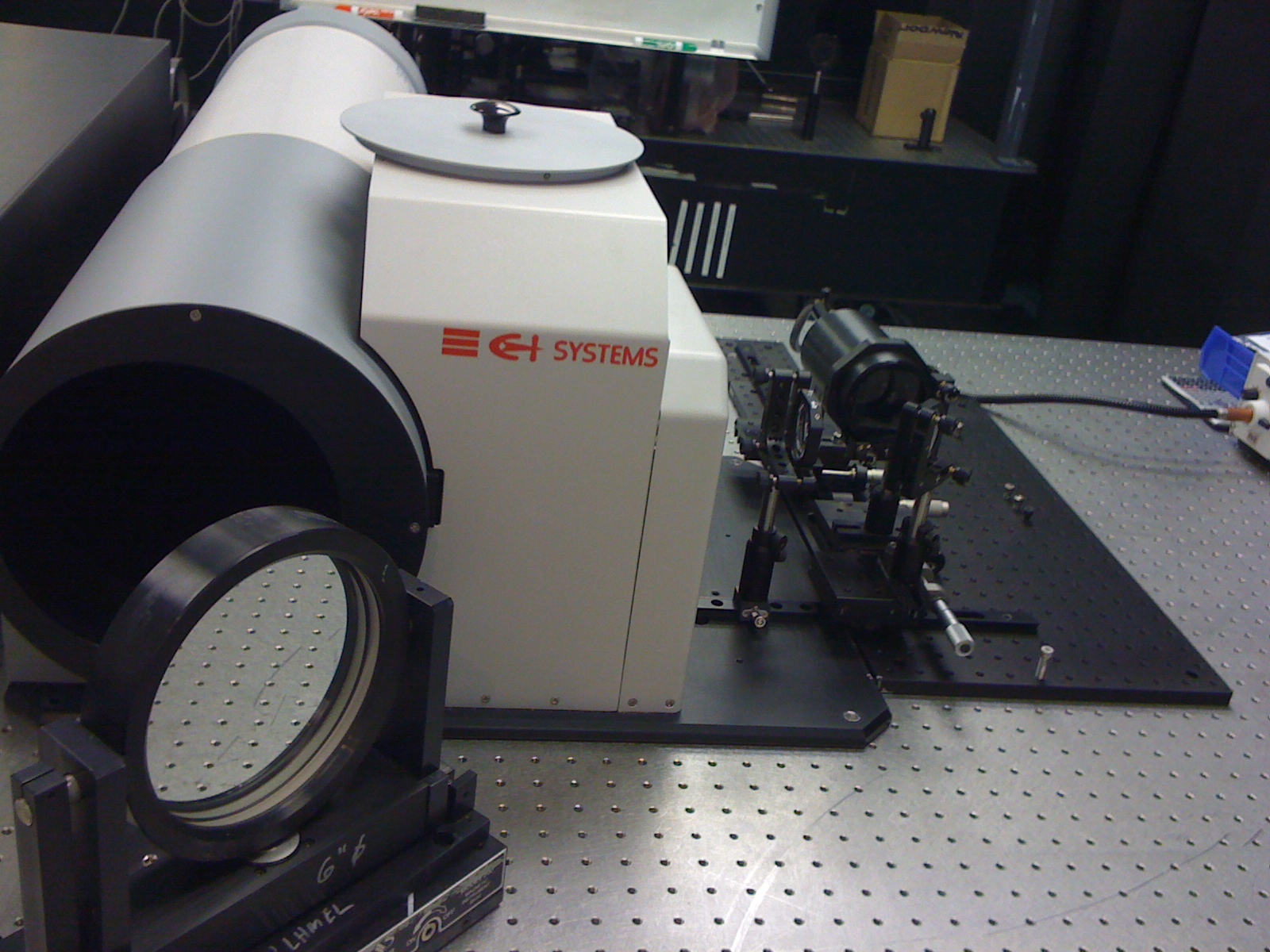

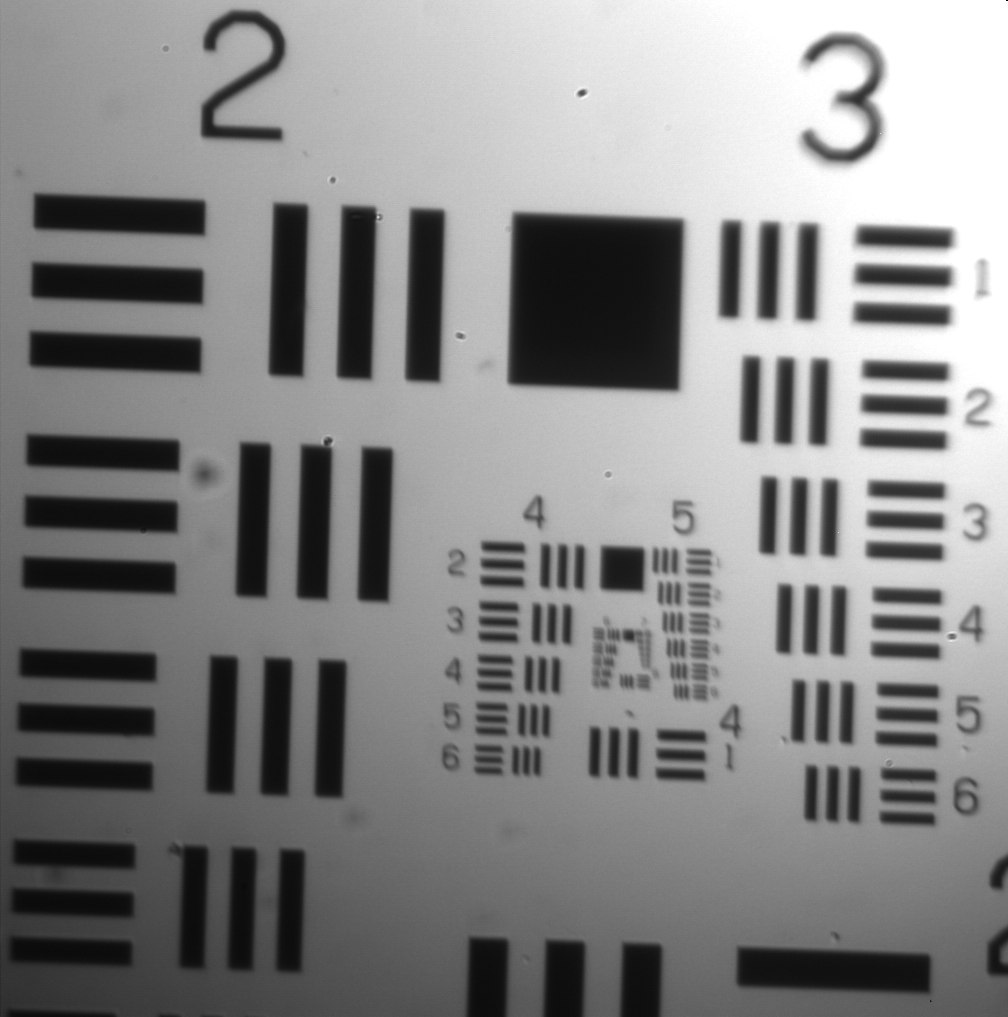

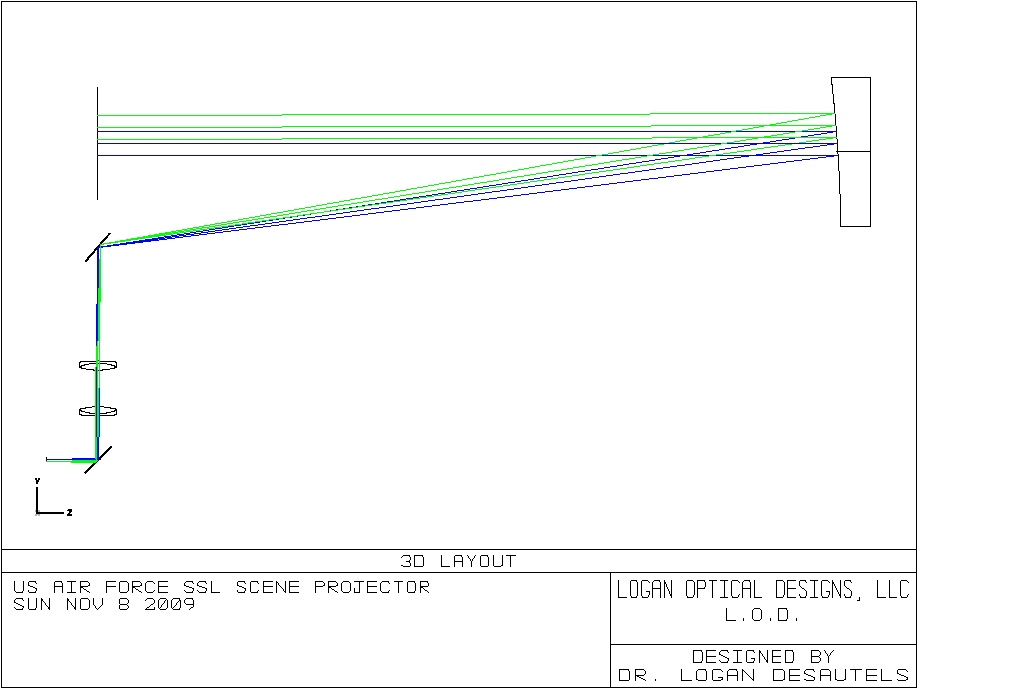

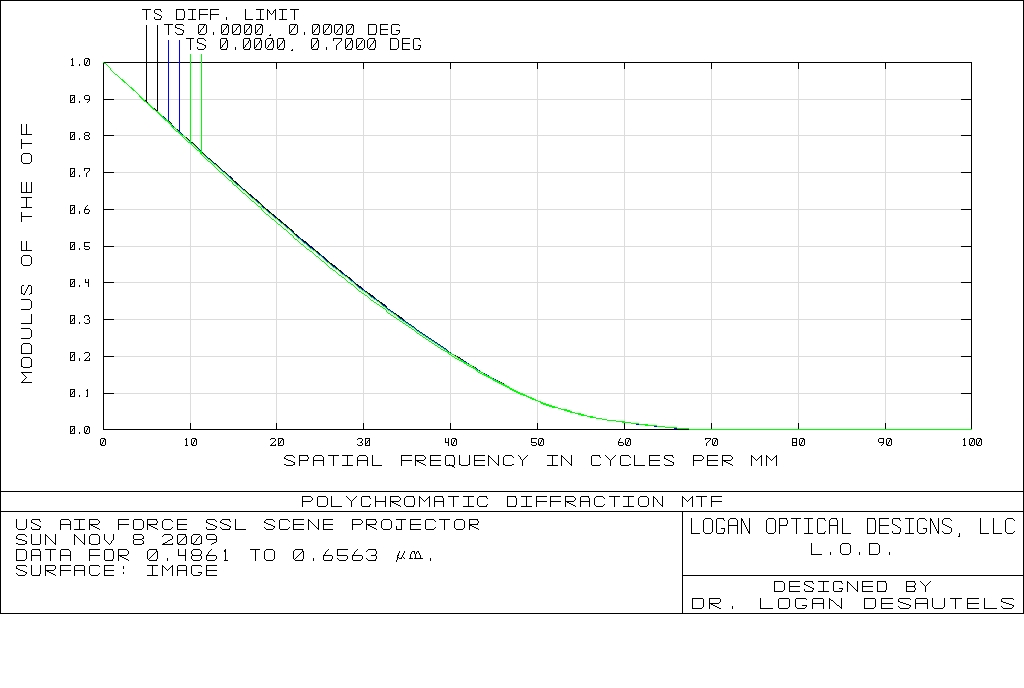

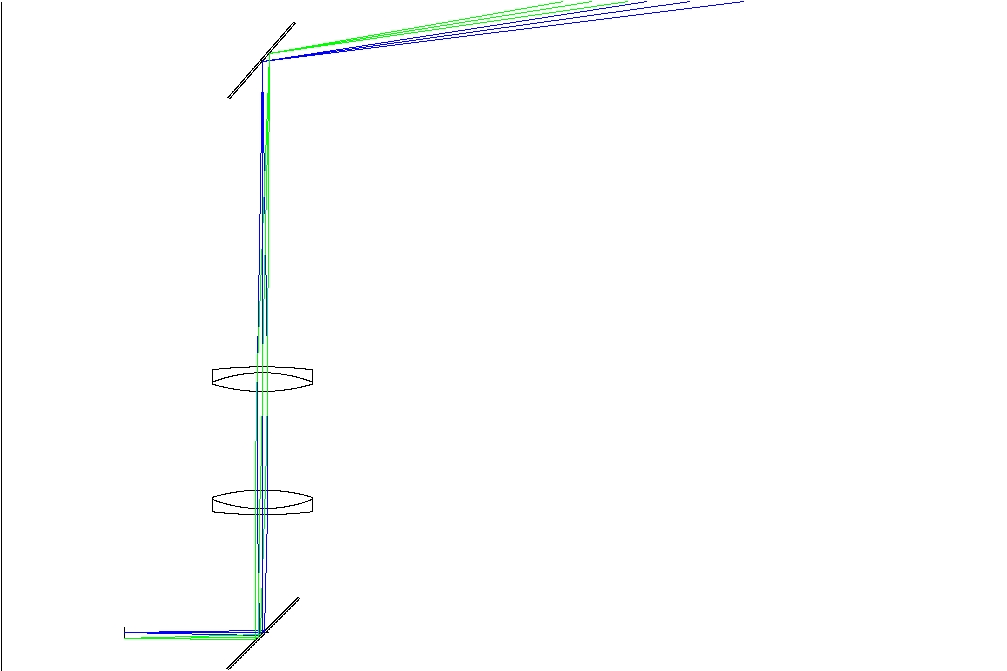

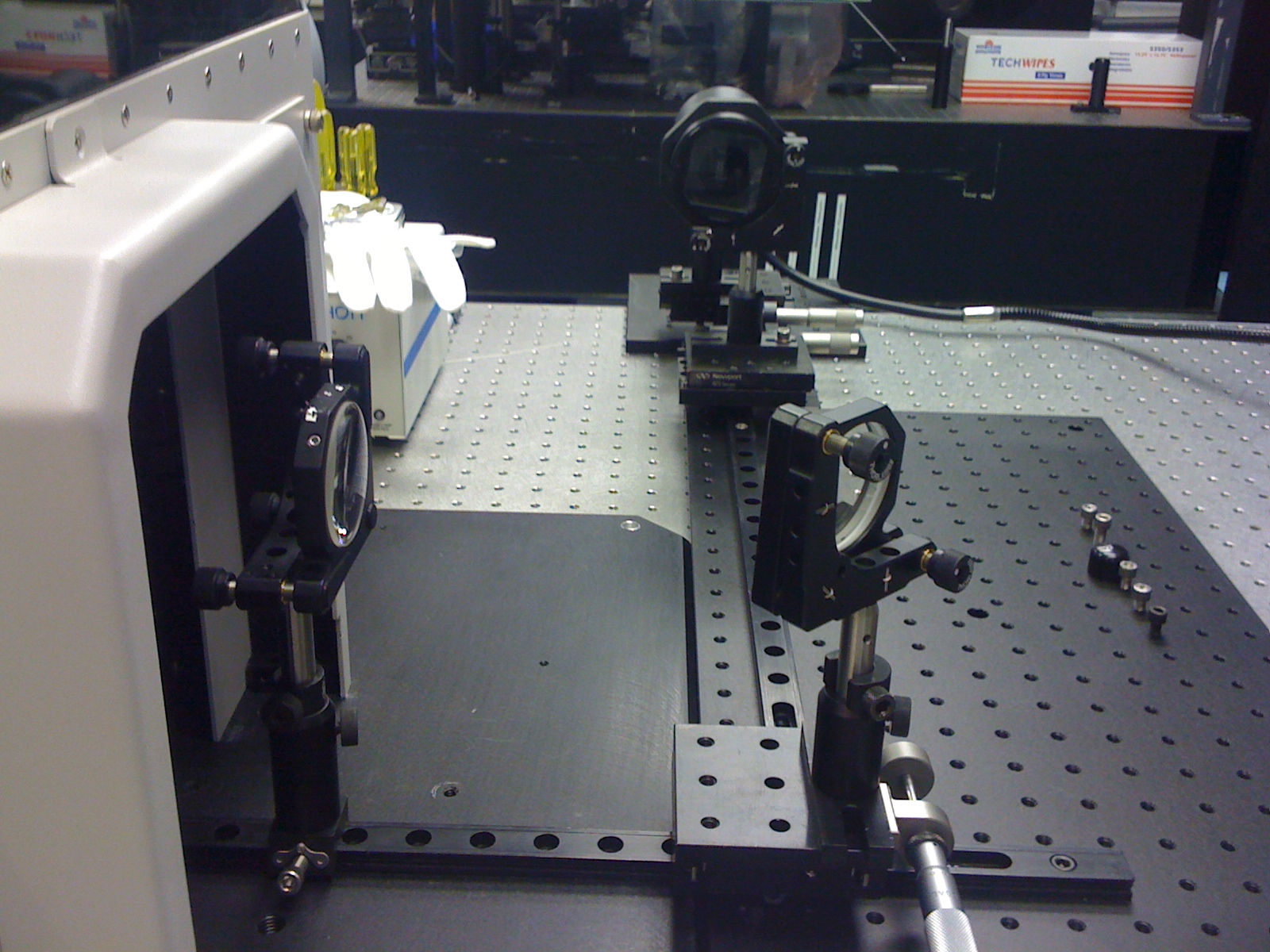

This relay lens is used in an Air Force damage testbed to image a sample under test.  Below are a few of the different types of analyses that Zemax is capable of producing.  This relay lens system was also used in an Air Force scene projection system that uses a CI Systems OAP.  This scene projector uses old 35mm slides as objects to be projected.
LOD Designs

AF Relay OAP Design
LOD Examples of Previous Work
